20CrMnTi Helical Gear Reducer H Series large torque speed reductor drive power transmission
Product Describtion
Henan Dongtai Gear Co., Ltd is a famous and experienced manufacturer in China. Our business focus on the gear reducer and other mechanical transmission spare parts. Our products have been exported to Europe, Southeast Asia, the Middle East, Africa, South America and many other countries and regions. They are widely used in crane hoist, chemical industry, paper-making,machine manufacturing, light industry, architecture material, mines, etc. Our products have the excellent quality and high stability, the advanced performance and competitive prices.
The customers can simply select the ideal gear unit for your requirements and benefit from the advantages provided to you by our standard range. The high quality, fast availability worldwide and the attractive price level are the main strengths of this range of gear units. Horizontal or vertical mounting positions, different versions of helical, bevel and bevel-helical gear units, and the compact design of our gear units give you maximum flexibility in the design of your plant.
The H series helical gear reducer has sound-absorbable structure, larger surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.
1.H series gear units adopt currency layout and may transform into special reducer according to customer's requirement.
2. The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.
3. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.
4.Input mode : motor connected flange ,shaft input.
5. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.
6. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.
H Heavy Duty Gearbox (size:3-12)
Power range: 3 ∼2000 KW
Transmission ratio range: 6.3-400
Torque range: 6.2-78KN.m
Features
Unique design concept for heavy duty condition.
High quality casting housing improves the gearbox mechanical strength and anti-vibration capability.
Transmission shaft is designed as poly line. Compact structure meets the higher torque transmit capacity.
Usual mounting mode and rich optional accessories..
Main applied for
· Belt conveyor drives
· Bucket elevator drives
· Agitator drives
· Hoisting gear drives
· Travelling gear drives
· Paper machine drives
· Dryer drives
· Water screw drives
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 30 years' experience.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
Product Tags:
|
|

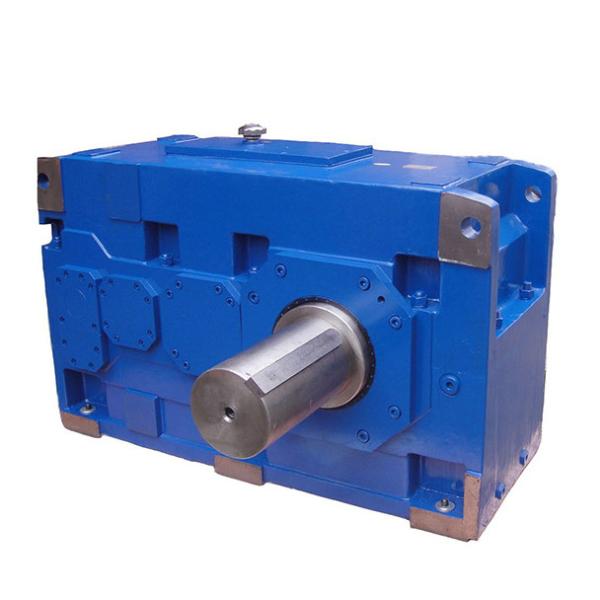

20crmnti H Series Speed Reduction Gearbox Drive Power Transmission Images
|
